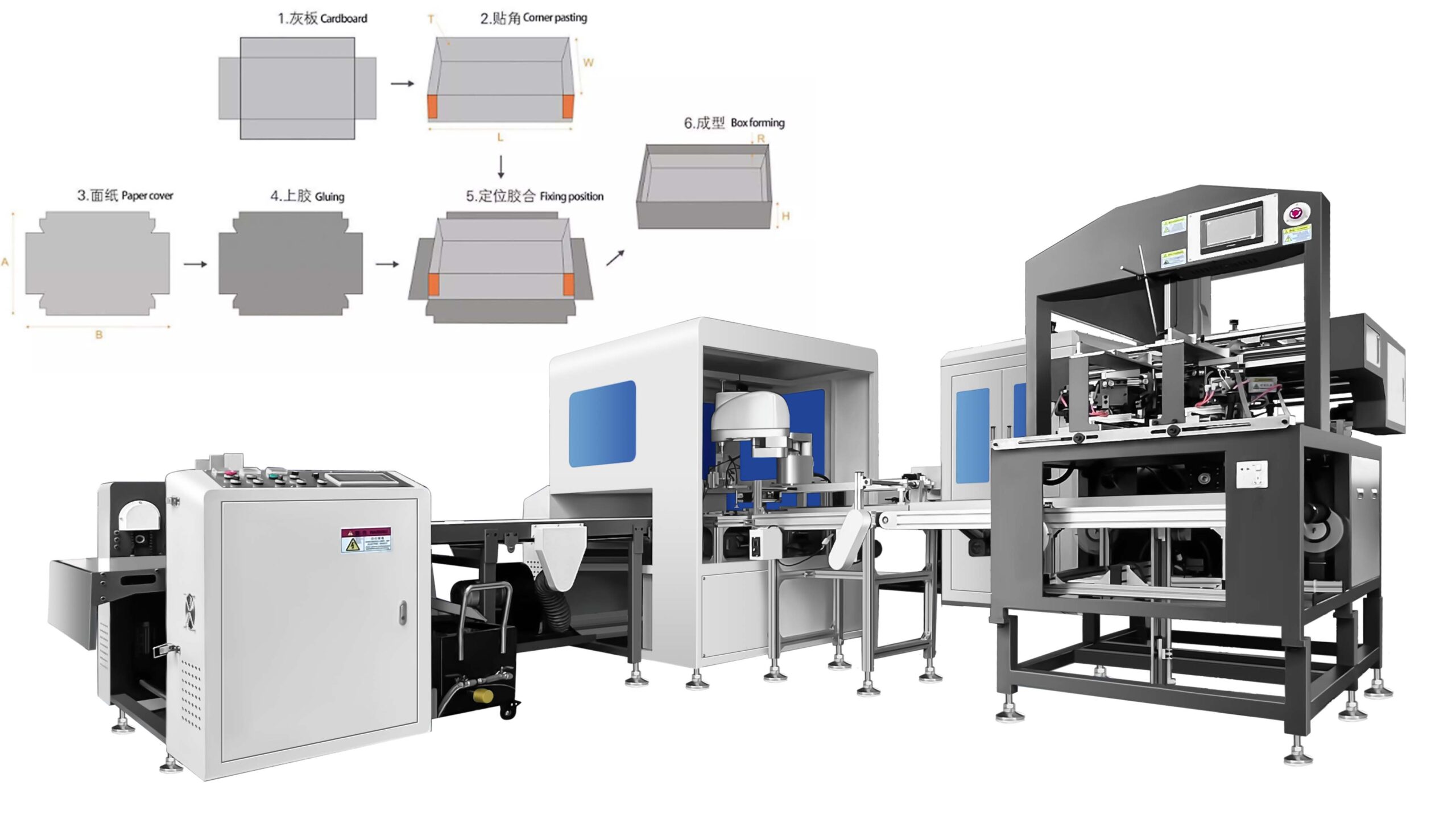

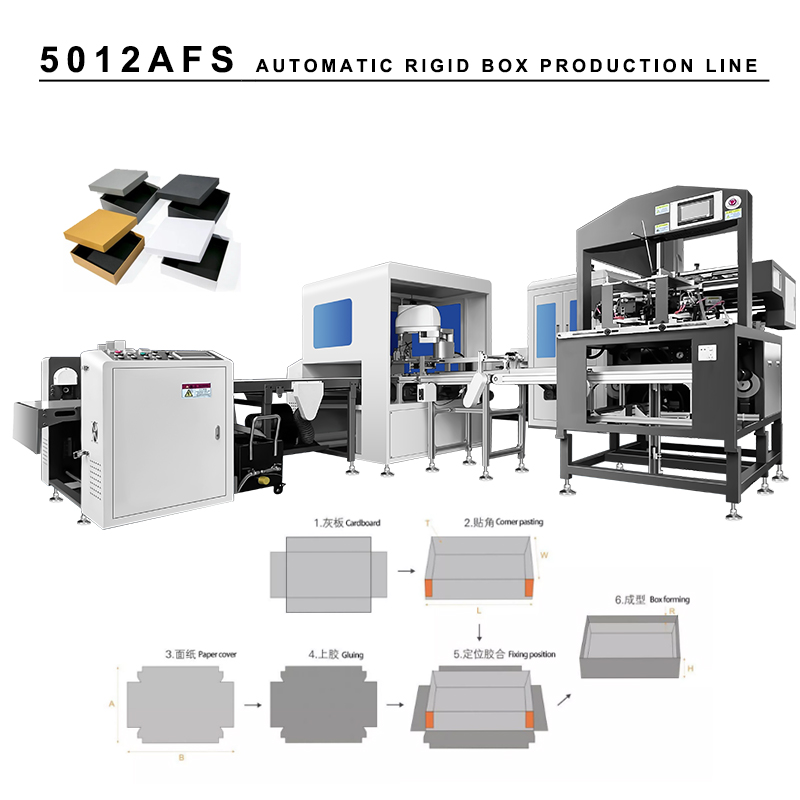

产品简介
该设备是一款高精度、高效率的全自动皮壳和礼品盒上胶定位设备，适用于各类皮壳和天地盖盒上胶和定位，适用于各类书型盒、折叠盒、烟盒和各类高端礼盒、手机盒、天地盖盒、化妆品盒、酒盒等包装盒的生产。
1送纸部分采用凸轮高速飞达送纸机构，保障了送纸平稳，解决了双张多张等问题；
2 过胶部分采用自动循环输送和回流系统，保障了纸张过胶平整均匀，节省胶水等；
3 定位部分采用广角超高清工业2000万像素摄像头对面纸拍照计算坐标并通过高精密4轴联动机器人抓取内盒精准定位于面纸之上，其精度可以控制在±0.2mm以内。
本机可直接连接客户现有天地盖盒生产的其他设备，如自动贴角机，自动成型机。一机多用，大大提升了生产效率。
Introduction
This equipment is wide used in paper sheets feeding, gluing and positioning for various hardcovers and rigid boxes and gift boxes, such as book hardcover, folding hardcover, jewelry box, cellphone box, wine box, cake box and cigarette box etc.
Instruction
- Feeder part adopts the specialized Cam structure, to avoid the double sheets or more sheets.
- Gluing part adopts the circulatory gluing system, and high precision gluing rollers to ensure gluing well-proportioned.
- Positioned unit adopts high-resolution industrial camera to calculate the position of paper sheet and positioning through robot which support ±0.2mm accuracy.
This machine accepts to combine the extra rigid box making machines which can output automatically.
机器参数：
| 型号Mode | DG-850BR | DG-1050BR |
| 单定面纸最大尺寸
Max dimension of Cover Paper Work by single line |
L1100-W700mm | 长度L1100-W900mm |
| 双定面纸最大尺寸
Min dimension of Cover Paper Work by Double lines |
L1100-W380mm | 长度L1100-W480mm |
| 面纸最小尺寸 | 高度H12-120mm | 高度H12-120mm |
| 单定成品盒尺寸 | Max:500*400*120mm
Min: 80*60*20mm |
Max:500*400*120mm
Min: 80*60*20mm |
| 双定成品盒尺寸 | 350*500*120mm | 450*500*120mm |
|
纸板尺寸(皮壳、裱衬) Cardboard Size |
长度L50-1050mm | 长度L50-1050mm |
| 宽度W50-550mm | 宽度W50-550mm | |
| 厚度T1-4mm 厚度T1-4mm | 厚度T1-4mm 厚度T1-4mm | |
| 生产速度
Output Speed |
20-46pcs/min 20-46pcs/min | 20-46pcs/min 20-46pcs/min |
| 定位精度
Positioning Precision |
±0.1mm ±0.1mm | ±0.1mm ±0.1mm |
| 机器电压/功率
Voltage/Power |
AC380V/50Hz/14kw | AC380V/50Hz/14kw |
| 必要气压
Air Pressure |
0.6-0.8MPa | 0.6-0.8MPa |
| 机器尺寸
Machine Dimension |
L8000mm*W3100mmxH2100mm | L8000mmxW5200mmxH2100mm |
| 机器重量
Machine Weight |
6200Kg | 6500Kg |
